STABILIZER / APFC / CVT

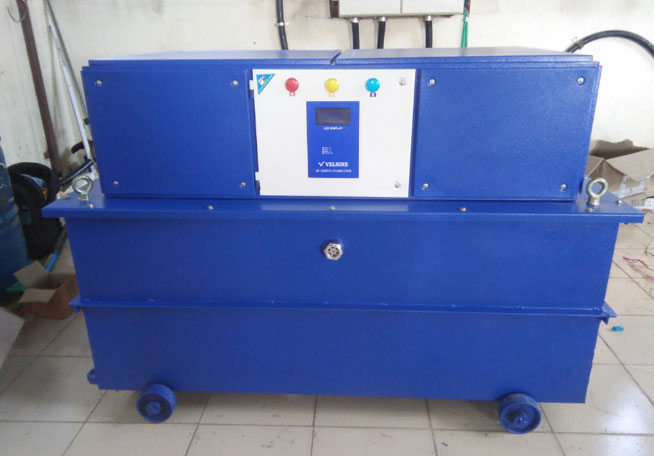

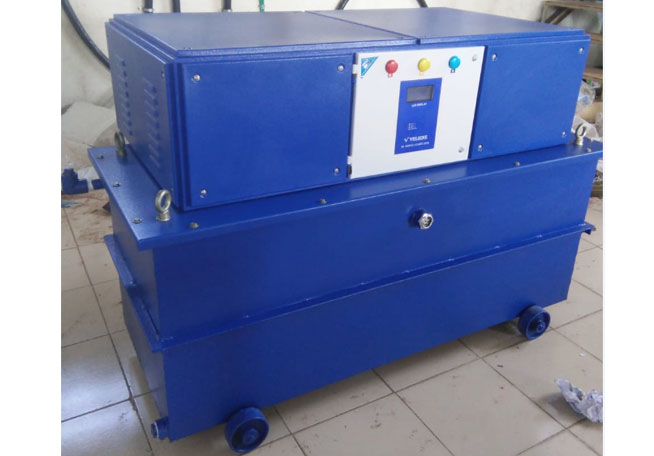

OIL COOLED SERVO CONTROLLED VOLTAGE STABILIZER

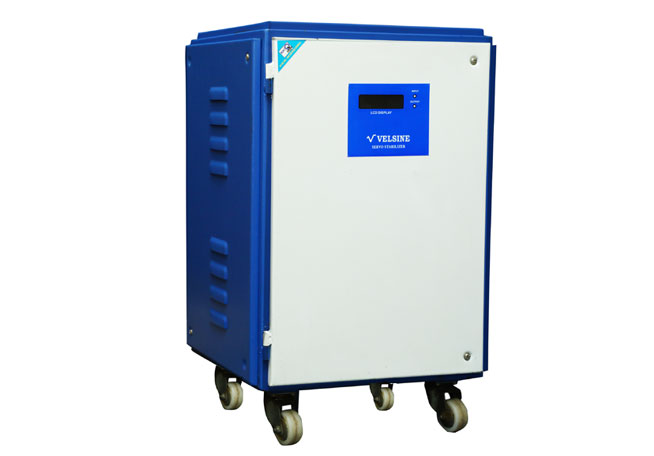

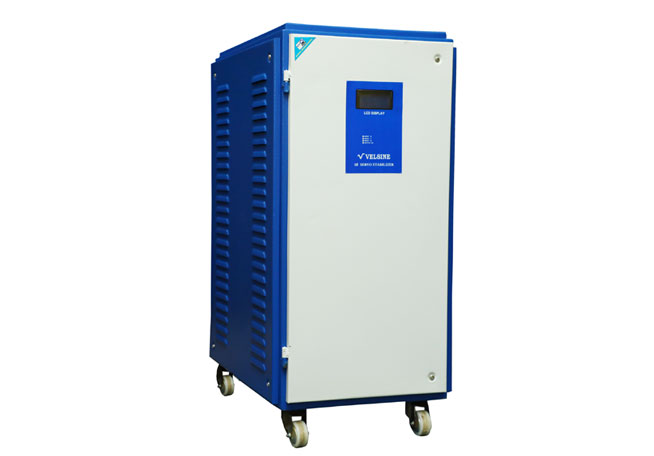

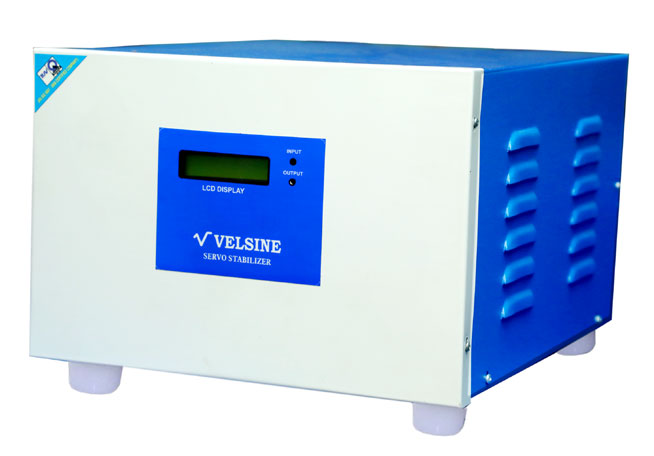

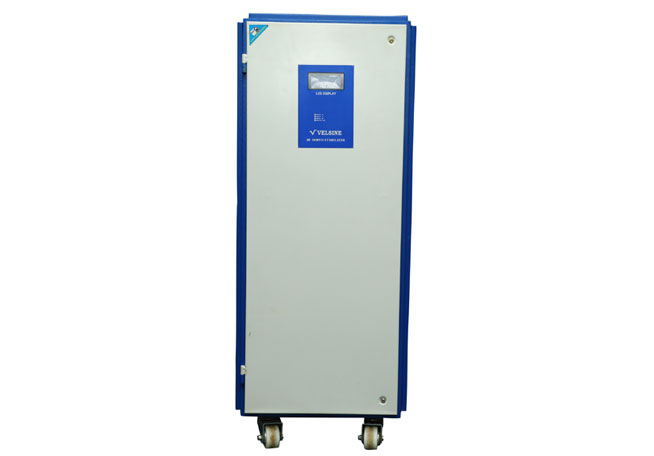

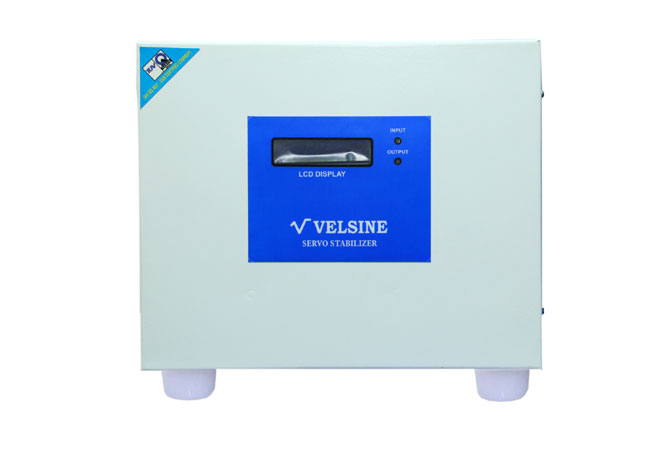

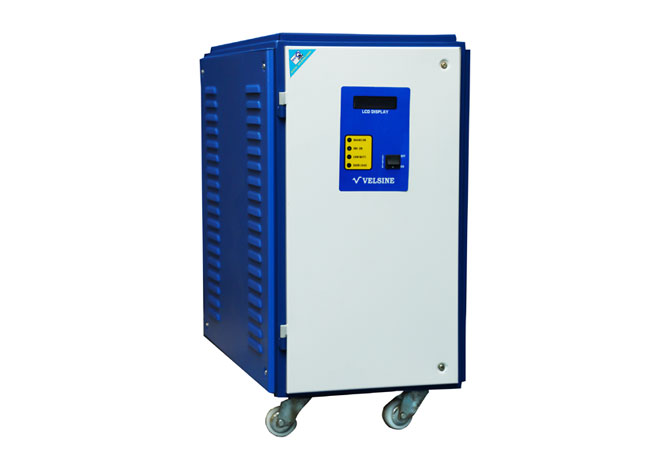

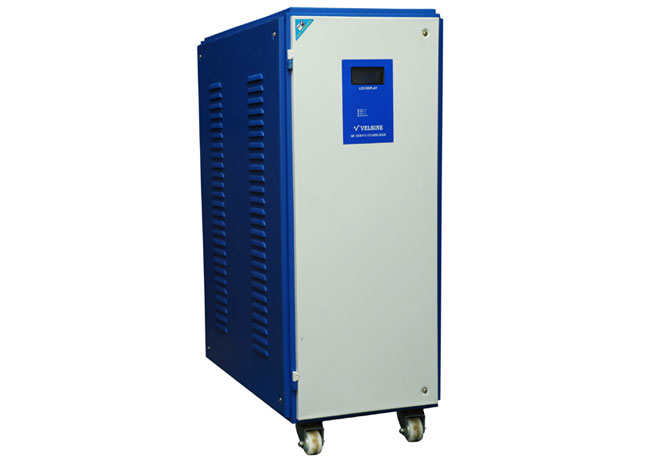

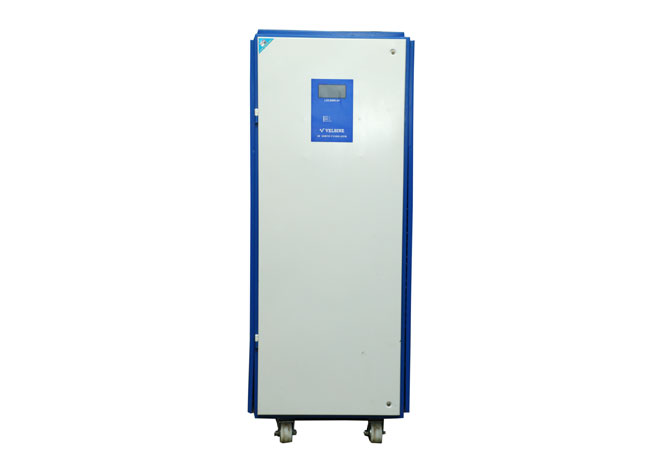

AIR COOLED SERVO CONTROLLED VOLTAGE STABILIZER

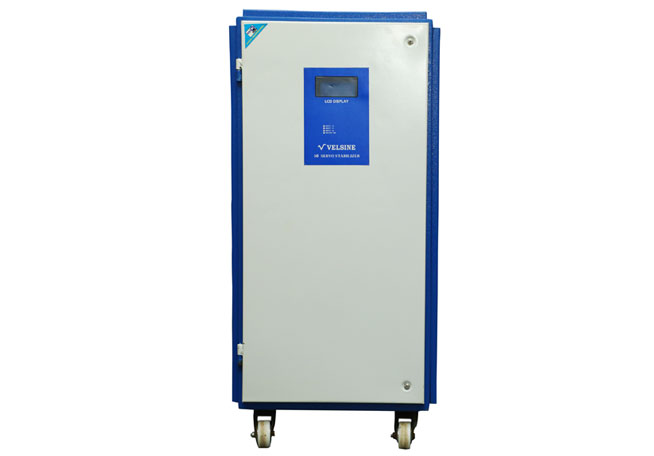

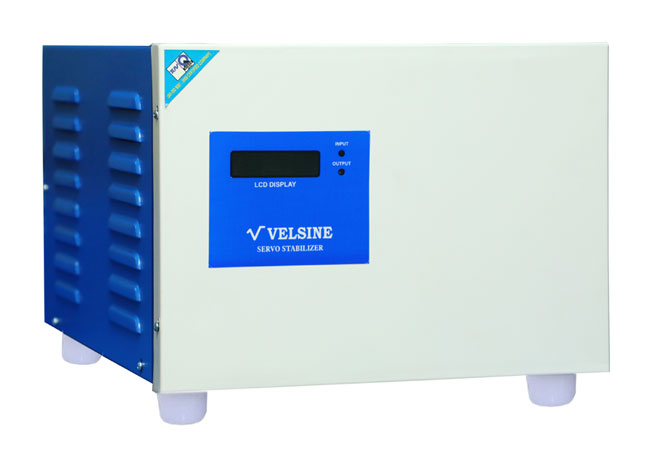

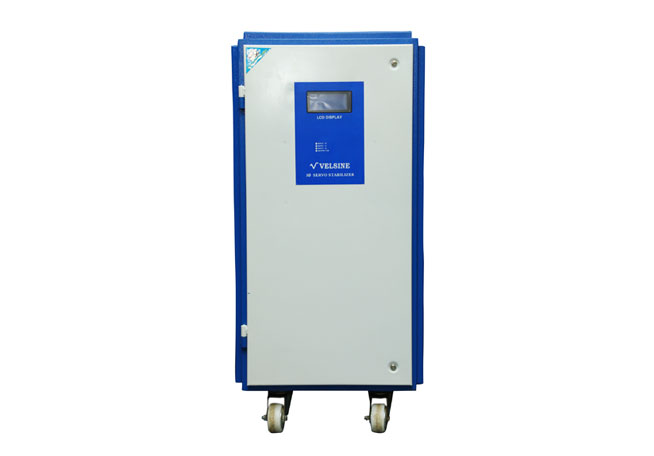

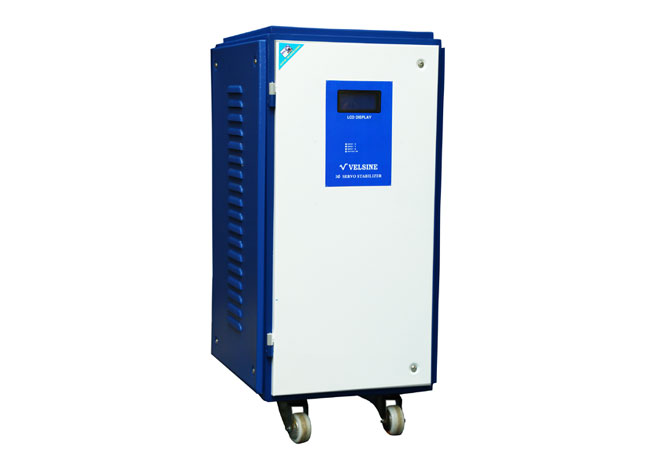

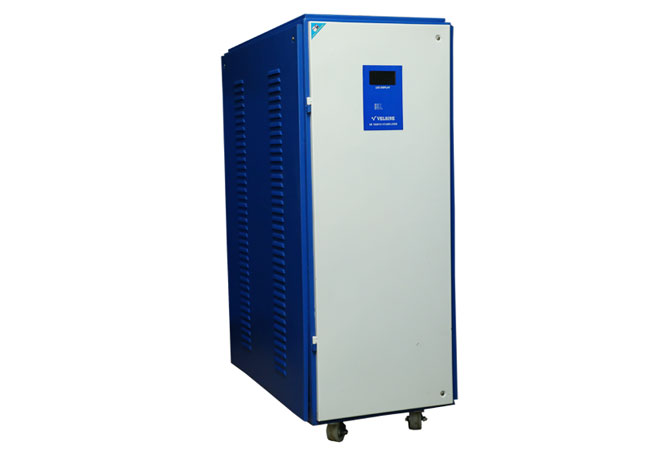

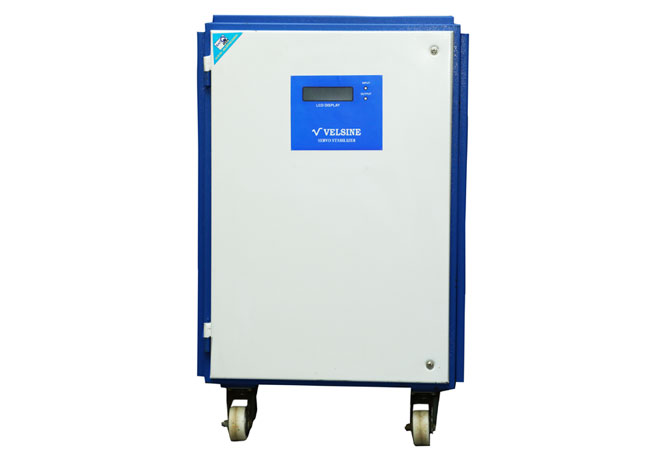

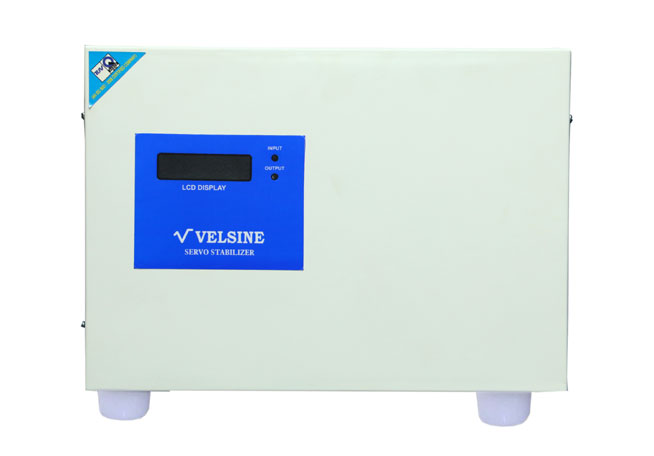

AIR COOLED SERVO CONTROLLED VOLTAGE STABILIZER
Technical Specifications |
|||
Capacity |
: |
0.5 to 1500 KVA |
|
Input Voltage |
: |
295 – 465 V 3 Phase |
|
Output Voltage |
: |
400 V 1% |
|
Input Frequency |
: |
50 Hz 5% |
|
Efficiency |
: |
98% |
|
Correction rate |
: |
70V/Sec. 3 Phase |
|
Ambient Temp |
: |
45deg C max |
|
Humidity |
: |
Upto 90% |
|
Harmonic Distortion |
: |
Nil |
|
Indications |
: |
Input Low/High, Output ‘ON’ |
|
Metering |
: |
AC Voltmeter to measure Input / Output |
|
Controls |
: |
Auto / manual, Increase / decrease, set Adjustment |
|
Salient Feature |
|
• |
Wide input Voltage range |
• |
Plug in type PCB and modular Construction |
• |
Ideally suitable for high starting Currents |
• |
Rugged AC synchronous motor for long life |
• |
High speed of correction & quick response |
• |
High efficiency, reliable IC version control |
• |
Special design to minimize the losses |
• |
Control circuit isolated from the mains |
• |
Load Power factor phase shift has no effect on operation |
• |
No, oscillation, No overshoot / No undershoot |
• |
No wave from distortion, no noise generation |
• |
Compact size mounted on wheels for easy movement |
• |
Over load and short circuit protection |
• |
Over voltage & under voltage trip / protection |
• |
Single phase preventer for 3 phase stabilizers |
• |
Audio indication for over voltage & under voltage |
• |
Special electronic circuit for automatic operation on generator and also main supply |
• |
High quality lamination and Electrolytic enameled copper used for transformer to meet international Standards |
• |
Oil lever indicator, Drain pipe with Value & oil inlet lifting |
• |
Hooks & Grounding Bolts for oil cooled Avr’s |
Optional features |
|
• |
In-built stabilizer by-pass / change over switch. |
• |
In-built super isolation transformer |
• |
In-built step up/step down transformer |
• |
In-built RF/Spike & Surge Suppressor |
• |
3 Digit (LED) AC Volt Meter |
• |
AC Ammetor (Digital / Analog) on load side |
• |
Transformer oil (IS:335) for oil cooled stabilizers |
